4 Post Hoist, 5T Alignment Hoist – Heavy Duty Workshop Grade – JAFP5.0-PRO

Jackaroo 5T Pneumatic Lock Release System 4 Post Hoist for Wheel Alignment or Servicing – Ideal for cars, 4×4 and light truck workshop

4 Post wheel Alignment Hoist powered by 415V Electro-hydraulic system and air lock release  mechanism and all essentials safety Feature. It is a heavy duty and tough built car hoist for long life service of  wheel alignment & other mechanical repairs.

It is also fitted an Emergency lowering valve in case of power outage

1 of 2.5T hydraulic Jacking beam, Slip plate kit and turn table are included.

should you want to have a look at other 4 post hoist, click here

Now,, if you are interested in this model of 4 post hoist , please checkout the tabs below to see additional technical details, delivery conditions or delivery with installation, then forward an enquire to get the ball rolling. Sorry we won’t be able to provide a quote over the phone.

Additional Information

Features:

  • Lifting capacity of 5000 kg
  • Max.  Lifting Height 1700 mm (lift) & 340 mm (beam jack)
  • Min. Lifting Height 180mm
  • suitable for car and light Truck Workshop

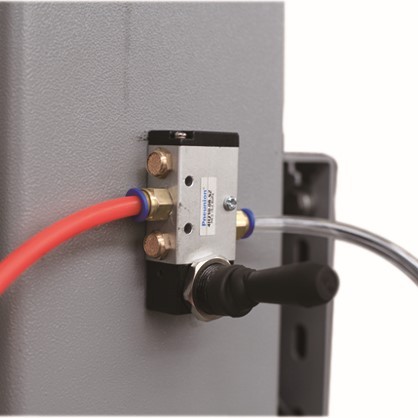

  • Pneumatic Unlocking mechanism

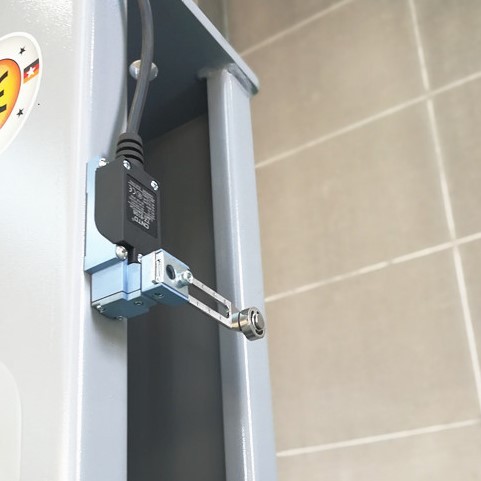

  • Height Limit Switch
  • Explosion-proof valve, for extra safety in case of brokerage
  • Top built quality with CE-certificate
  • 3 Phase power
  • Powder coated

Technical Data:

  • Lifting capacity   5.0T
  • Sliding beam jack Capacity 2.5T
  • Max lifting height 1700mm
  • Sliding beam jack lifting height 340mm
  • Minimum height 180mm
  • Lifting time 50S
  • Motor voltage 415V
  • Motor Power 2.2KW

Standard Inclusions:

  • Slip plate kit and turn table
  • 1 Sliding Beam Jack

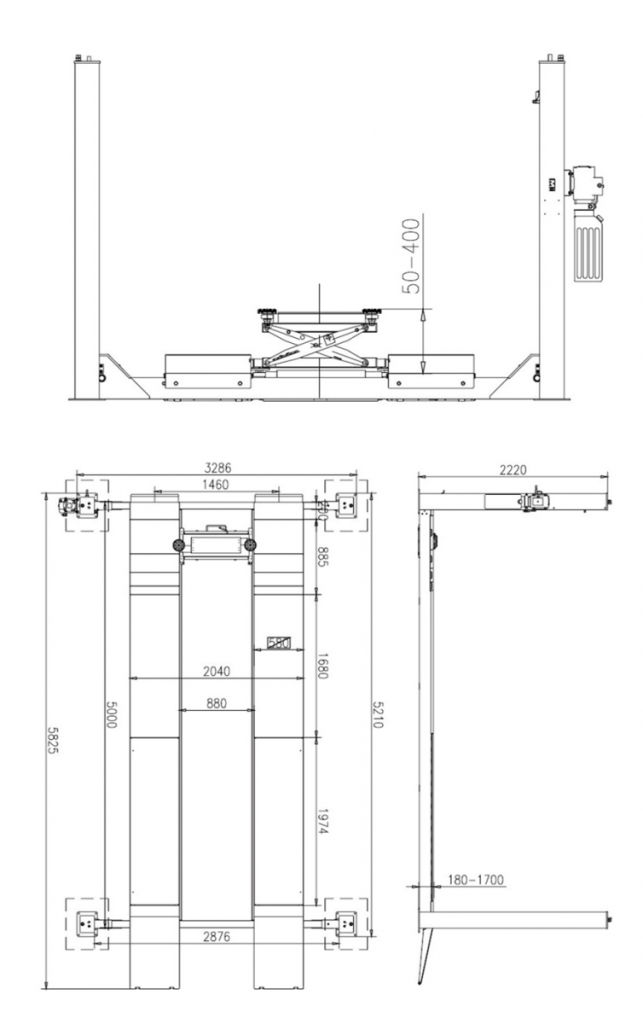

Dimensions

Delivery & Installation

Delivery from Sydney

At Pro Workshop Gear we offer delivery from Sydney to all over Australia by searching through all freight companies to find the best price and service.

However, due to the size and weight of the car hoists and car stackers most freight companies don’t deliver to non-commercial or farm sites, but if you have a commercial place in an industrial area and have an appropriate lifting equipment such as forklift available then you have no issue to get your purchase delivered to your place. To get a complete fixed price of an item simply hit the Enquire/Order above and provide the necessary information that we can get back to you with a fixed price including delivery. You are also free to organize your delivery from your end.

Delivery to the remote and residential area

We also support sending out our products to our valued customers that are interested to buy quality Vehicle Hoist and Car Stackers.

The best way we can help you with delivery is that we send your purchased item to a nearest depot to your address, once arrived they will contact you to get for picked up, then you may decide to pick it up yourself if you have what it takes, or you may contact a professional hoist installer in your area that can help you with pickup your hoist, delivery and installation.

To get a complete fixed price of this product, simply hit the Enquire/Order above to provide the necessary information that we can get back to you with a fixed price including delivery. also you are absolutely free to organize your own delivery from your end if you think you it works for you.

Supply, Delivery and installation all in one

Our Factory/warehouse based in Sydney NSW

Our lucky valued customers can enjoy our complete all in one package deals.

We have a fully trained and skillful service team with a medium Hiab crane truck plus other lifting equipment ready to do the job. we are able to provide site inspection, supply, delivery and installation in Sydney region also all over NSW depending on the size of project, no matter if you are chasing a 2 post hoist , 4 post hoist, a scissor lift or any kind of car stackers to install in a commercial or residential site, just hit the Enquire/Order above to provide the necessary information that we can get back to you with a fixed price and hassle free process, from start to up & running
